Extractor Hammers




Holte Manufacturing

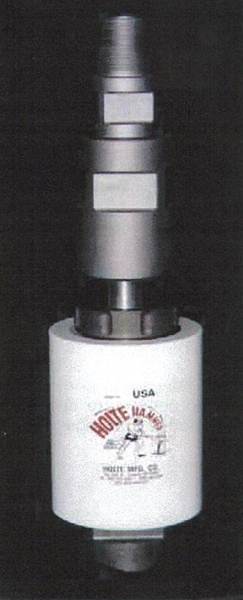

Medium Extractor pictured



The Holte Extractor Hammer, pictured at right, is a pneumatic hammer. The outer sleeve of the medium extractor is a reciprocating weight that weighs 200lbs. It cycles fast like a down hole hammer. The extractor threads are 4 ½ reg. pin up and box down. With adaptor subs it can be fastened to the top head drive, or Kelly of any rig. A sub on the bottom is fastened to the drill rod, casing or whatever you want to pull. While the Extractor Hammer is hammering the operator can pull up or push down, twisting simultaneously, if desired. Normally you need only to pull


Extractor Hammers

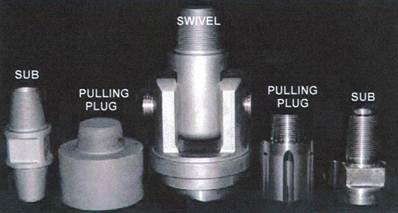

Accessories include Subs, heavy duty hinge and threaded casing adaptors.


Extractor Hammers
